Ibrid Nano Polisher Short Neck

BLX kit updated with the new Extension shaft
Ibrid Nano Polisher Short Neck- Gallery photo 1

Photos

Ibrid Nano Polisher Short Neck- Gallery photo 1Ibrid Nano Polisher Short Neck- Gallery photo 2iBrid Nano polisher with short neck - HR81M/STPiBrid Nano polisher with short neck - HR81M/STBiBrid Nano polisher with short neck - HR81M/BLXiBrid Nano polisher with short neck - HR81M/BLX case photo 1iBrid Nano polisher with short neck - HR81M/BLX case photo 2

Videos

Ibrid Nano Polisher Short Neck - Gallery video 8Ibrid Nano Polisher Short Neck - Gallery video 9Ibrid Nano Polisher Short Neck - Gallery video 10

HR81M

The Bigfoot iBrid Nano polisher is more than just technology, it’s a design philosophy that will lead us into the future evolution of RUPES. This mini polisher is considered as one of the most versatile on the market today thanks to several factors such as the functionality as both battery and corded tool and the possibility be configured with 3 different functional movements including 3mm random orbital, 12mm random orbital, and rotary. Those movements can then be coupled with a variety of backing plates and brush attachments for various tasks. Orbital movement, rotary movement, polishing, sanding, cleaning, all-in-one compact easy to use system.

With so much versatility combined into a compact, ergonomic, and lightweight device, the iBrid Nano is the ultimate tool allowing the users to work on difficult to reach areas, tight spaces, intricate details, and all the surfaces where a regular size corded tool would not work.

Two different length options are available for the iBrid Nano: short neck version and long neck version.



Documents

Diagram

Available kits

9.HR81M

only body without battery()

HR81M/STP

AC-DC adaptor(9HP120LT)
Functional Unit Ø12mm orbit (58.390/C)
Polishing backing pad Ø50mm (2”)(996.001)

HR81M/STB

2x Rechargeable power pack (9HB120LT)
Charger (9HC120LT)
Functional Unit Ø12mm orbit (58.390/C )
Polishing backing pad Ø50mm (2”)(996.001)

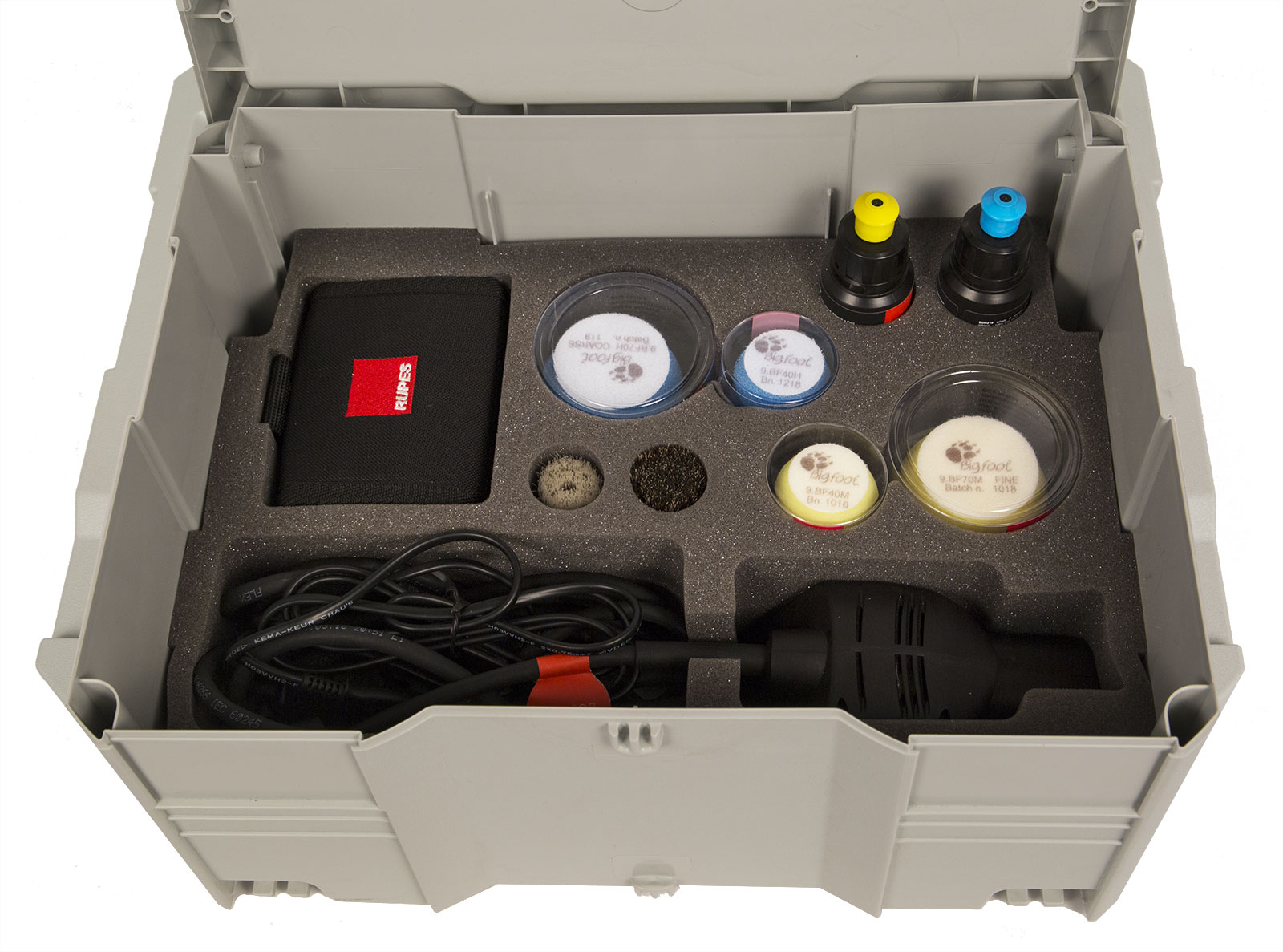

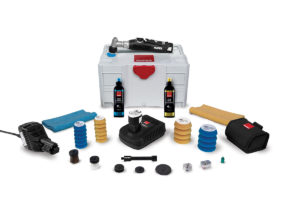

HR81M/BLX

Accessories Case with container(9.Z987/BF )
AC-DC adaptor (9HP120LT)
2x Rechargeable power pack(9HB120LT)
Charger (9HC120LT)
Extension shaft for Nano polisher (70mm length - M8 = F - M6 = M) (291.390/C )
6x Velcro foam polishing pad COARSE Ø30/40mm (1”1/4) (9.BF40H/6 )
6x Velcro foam polishing pad FINE Ø30/40mm (1”1/4) (9.BF40M/6 )
4x Velcro foam polishing pad COARSE Ø50/70mm (2”) (9.BF70H/4 )
4x Velcro foam polishing pad FINE Ø50/70mm (2”)(9.BF70M/4 )
ZEPHIR polishing compound COARSE 150ml (9.BFZEPHIR150 )
KERAMIK polishing compound FINE 150ml (9.BFKERAMIK150 )
Rotary Functional Unit (562.390 )
3mm orbit Functional Unit(581.390/C )
12mm orbit Functional Unit(58.390/C )
Polishing backing pad Ø30mm (1”1/4)(995.001 )
Polishing backing pad Ø50mm (2”)(996.001 )
Sanding backing pad Ø30mm (1”1/4) (997.001)
Horsehair Medium Cup Brush (9.BF3000 )
Nylon Hard Cup Brush (9.BF3030 )
10x Adhesive Abrasive Discs for denibbing Ø35mm P2000 (9.4552)
10x Adhesive Abrasive Discs for denibbing Ø35mm P3000(9.45530)
4x Microfiber Cloths (9.BF9010/4 )
RUPES Systainer T-LOC(9.CASE III)

Technical data

Voltage  VDC  10,8-12
R.P.M. 2000-5000
Battery life min ~ 30
Charging time min ~ 20
Electronic speed control
Overcurrent protection
Soft Start
LED indicator
Weight g 470*

* Measured without a functional unit, battery pack and power supply.
