3D DESIGN

3D DESIGN

RUPES provides to customers its know-how and extensive experience in the sector to design and implement customized solutions in order to completely satisfy their needs and requirements.

Through 3D technical support it is possible to correctly size the system, thereby guaranteeing excellent extraction performance for each workstation.

The 3D renderings and technical drawings, developed by engineers who are specialized in the field, allow us to show the end customer a preview of how the project will be.

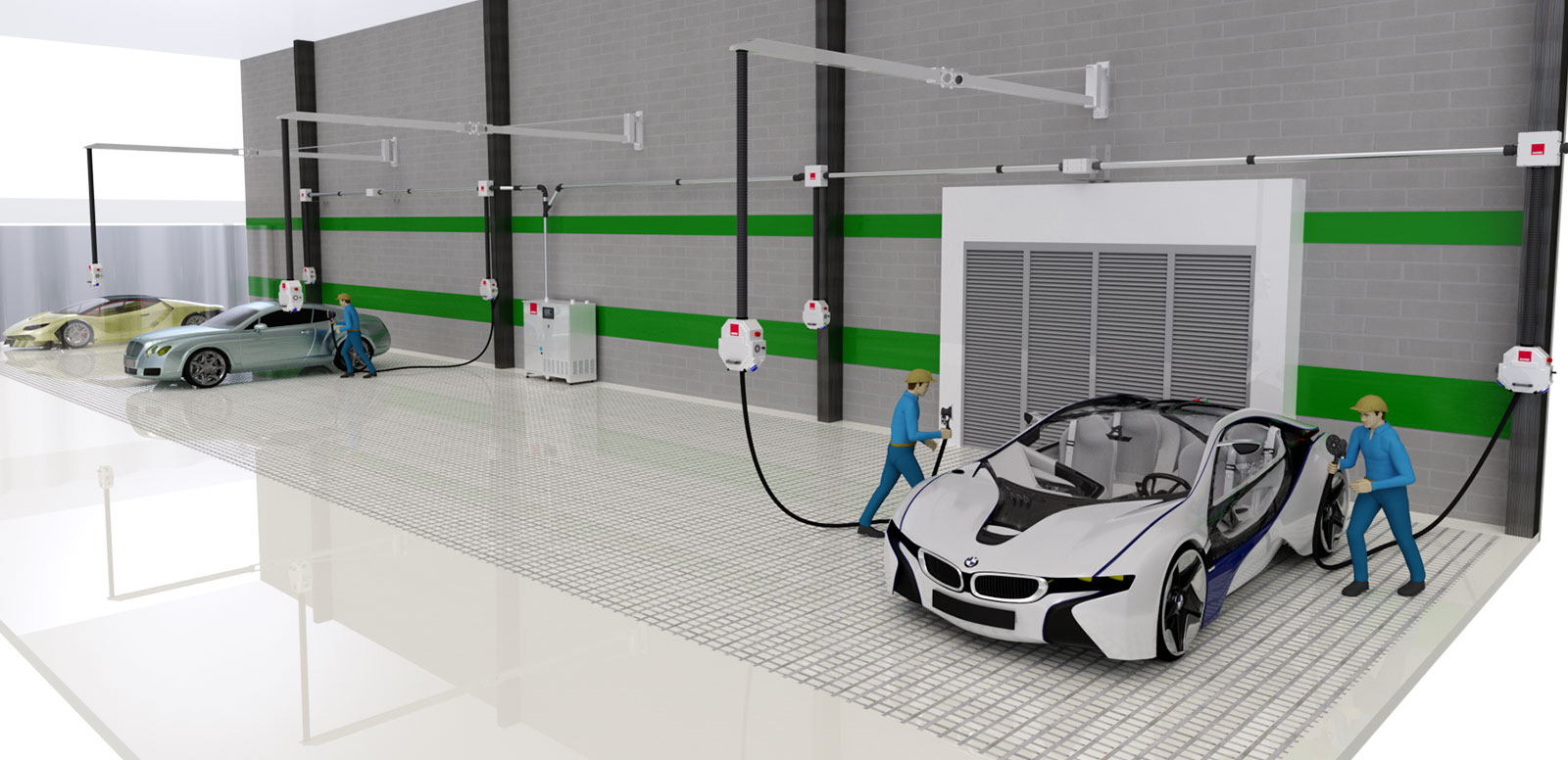

Automotive

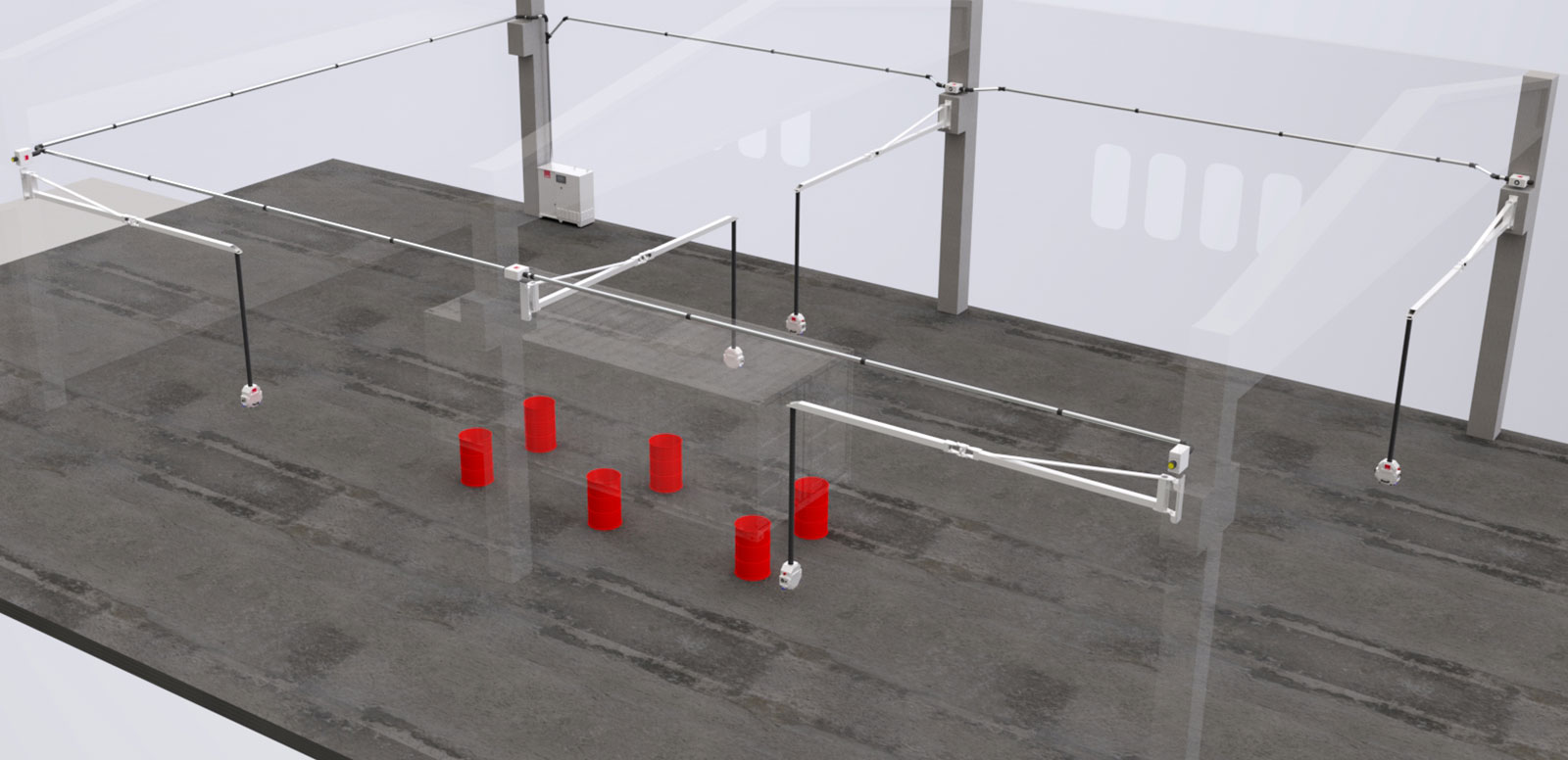

Industry

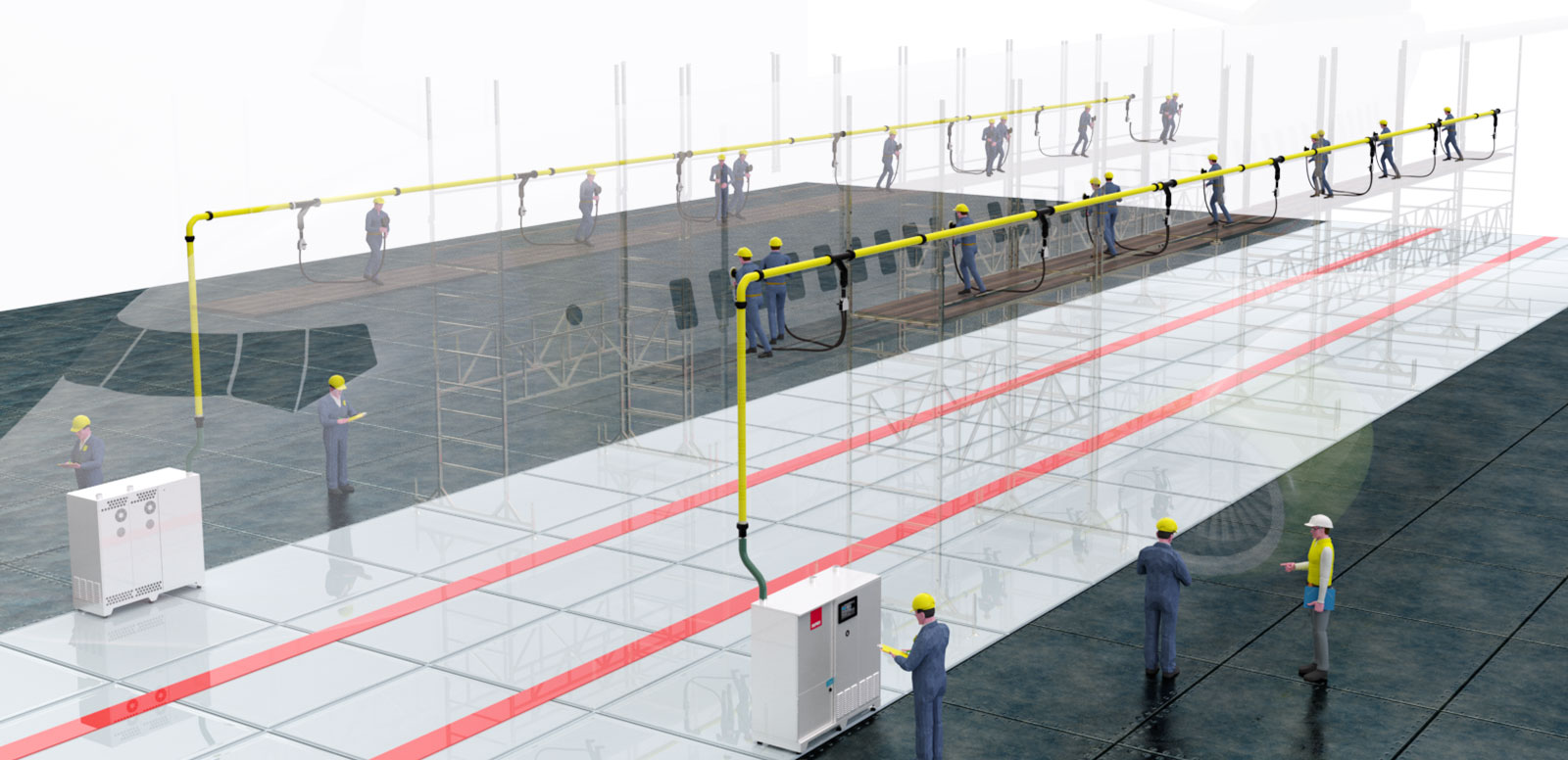

Aerospace

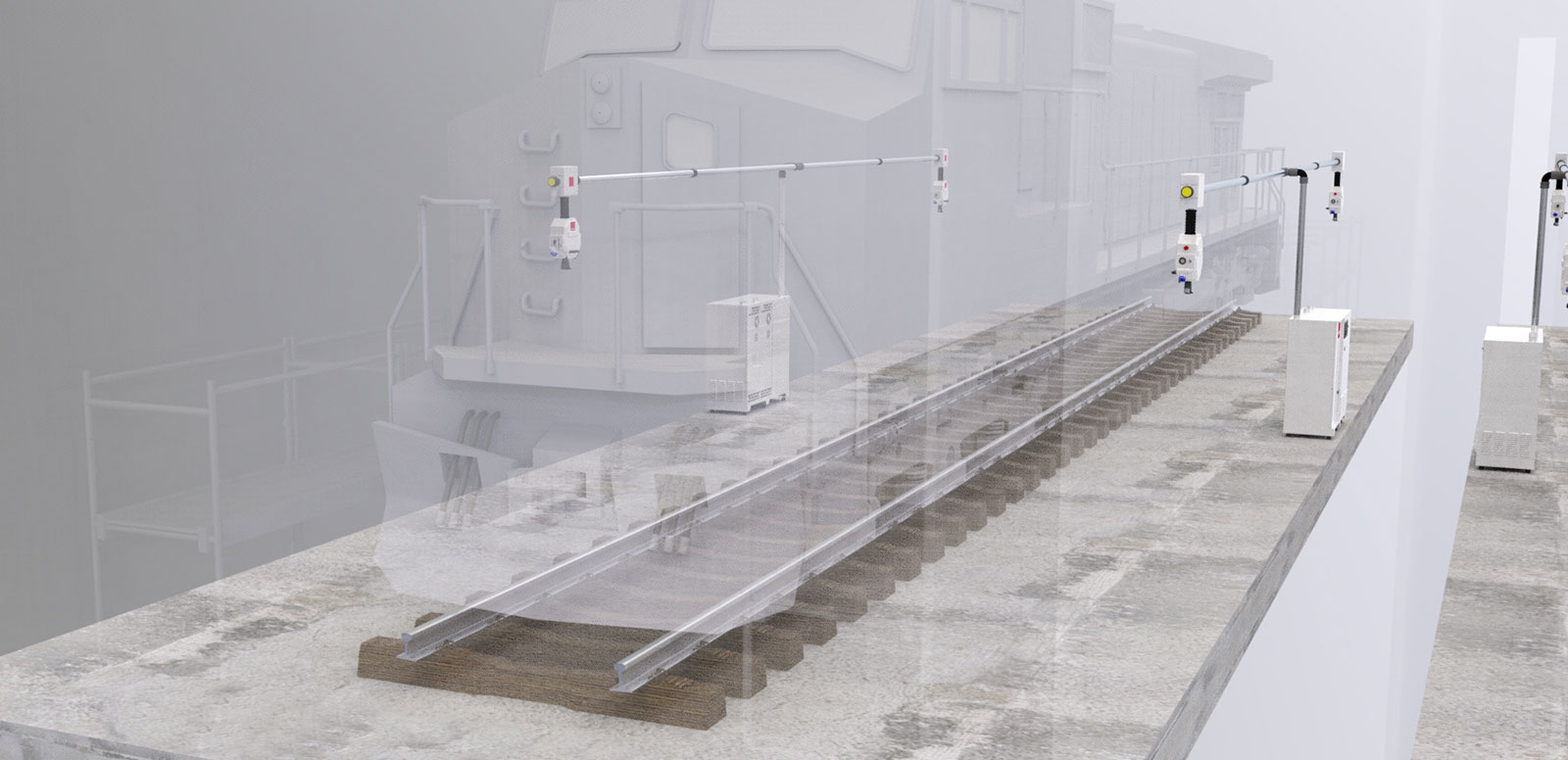

Railway industry

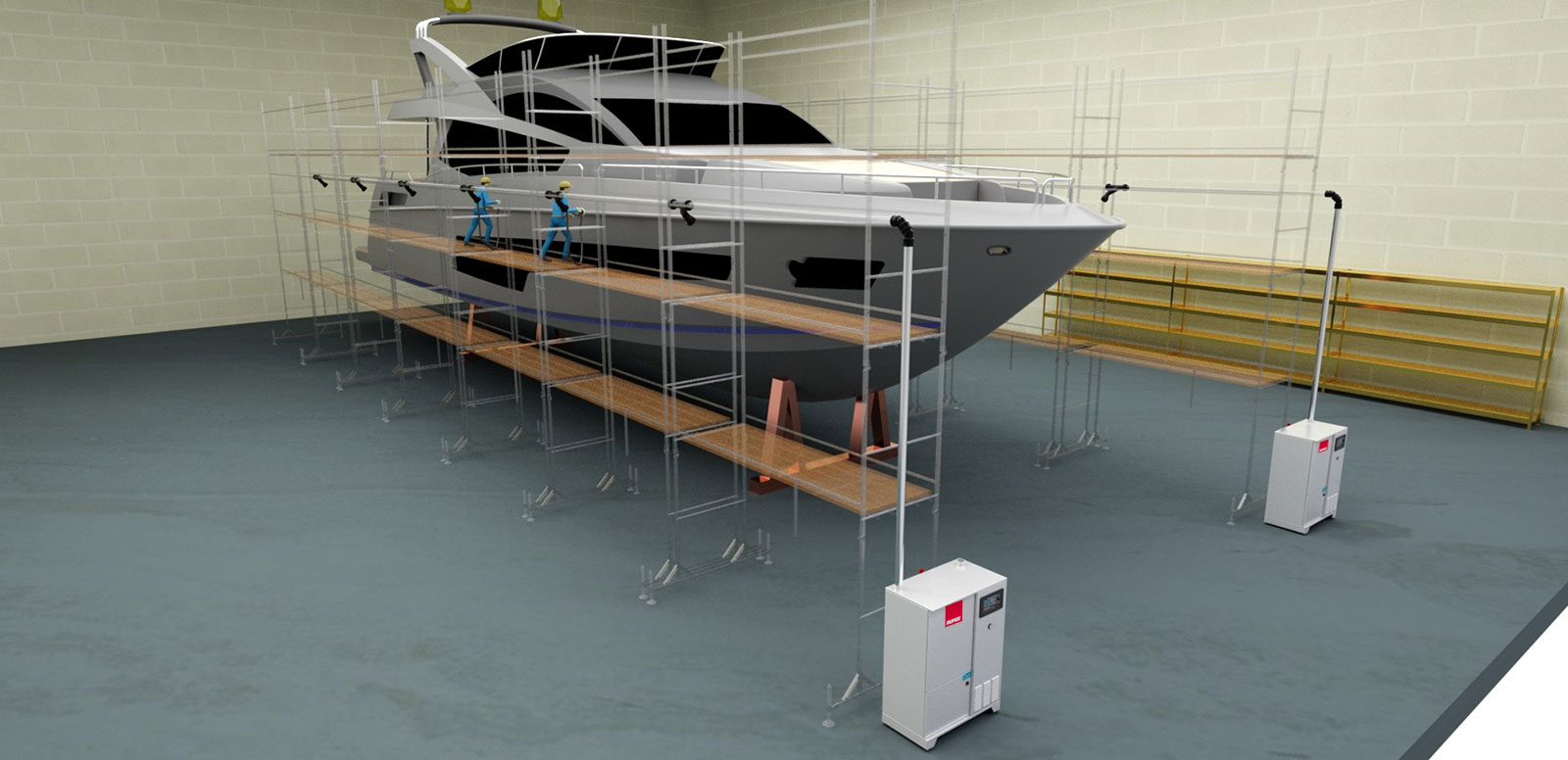

Naval

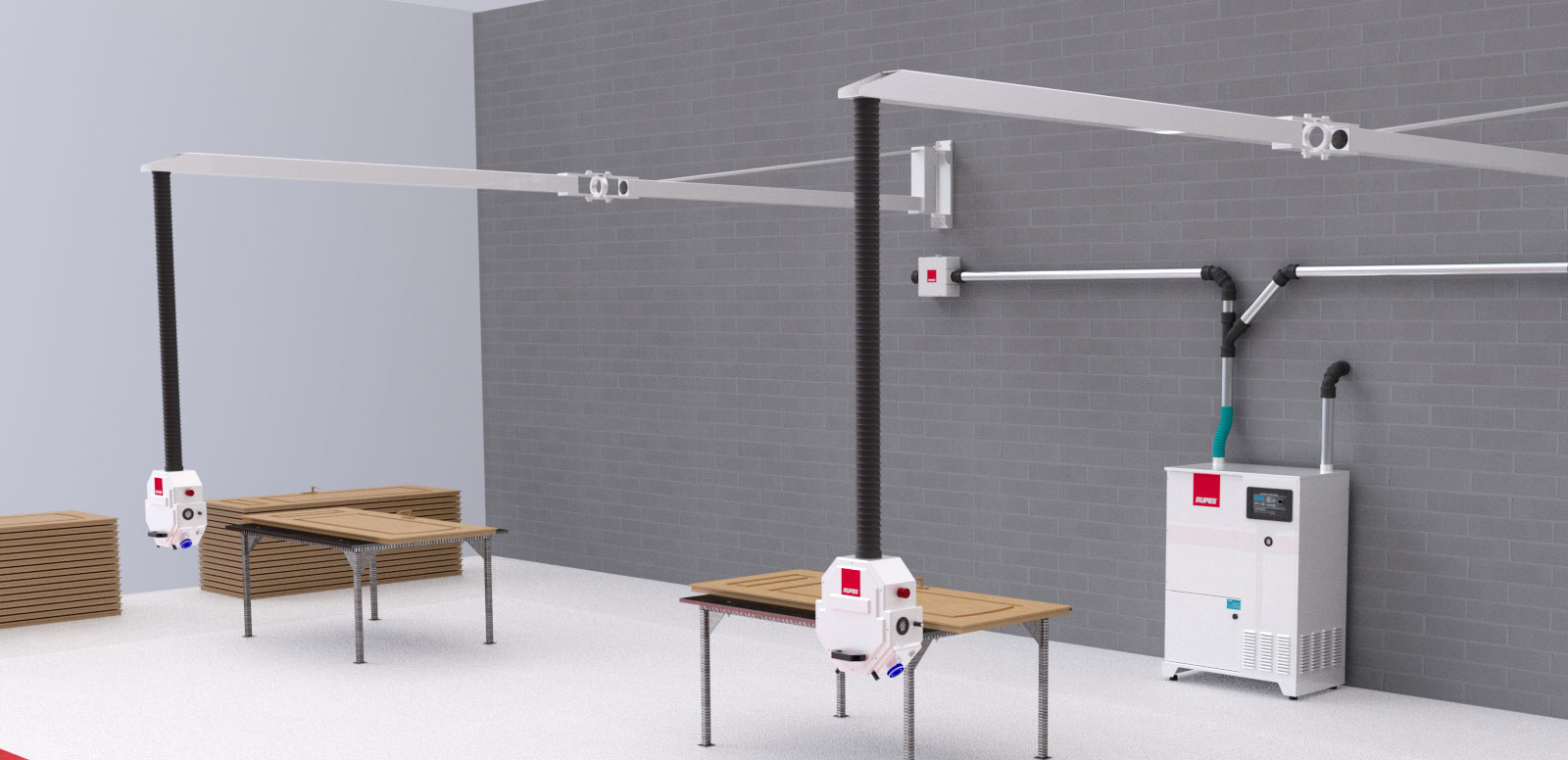

Carpentry



REQUEST A QUOTE
Features of the extraction system

Please indicate:

  • Possible positioning of the turbine (technical room/installation in the work area/installation outside the building etc.)
  • Main distances between terminals and between terminals and turbine
  • Main dimensions of the working area
  • Restrictions and constraints
