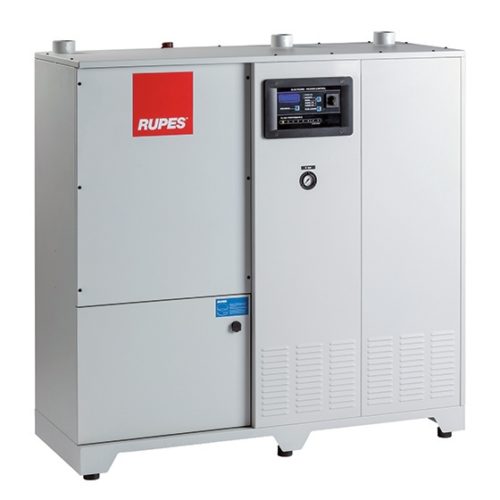

TURBINE HE1101 6kW – 8HP 400V 50Hz – DUAL MOTOR – ENERGY SAVING

HE1101

Turbine HE1101 6kW is a Central Vacuum Unit for extracting micro-dust generated during a sanding process or different industrial processes.

Excellent vacuum performanceHigh reliability (up to 20.000 hours without maintenance), High filtering efficiency (99.5% with micro-dust with 0.3 [μm] dimension). Cyclonic pre-filtration system and filter cartridge protection. Electronic control panel for managing Centralized Dust Extraction System.

Multi-function unit to display:

  • Total pump working hours;
  • Total filter working hours;
  • Useful notices for installation and use.

LED indicator for monitoring in continuous filter status. Efficient automatic filter cleaning system with Rotor Jet System. Double pump energy saving system. High safety level thanks to integrated protection devices. High silence thanks to integrated silencer and soundproofing panels.

Easy and fast extraction of dust container with automatic and pneumatic lifting system. High dust container capacity: 50 [L]

TURBINE HE1101 6kW - 8HP 400V 50Hz - DUAL MOTOR - ENERGY SAVING

Photos

TURBINE HE1101 6kW - 8HP 400V 50Hz - DUAL MOTOR - ENERGY SAVING

Technical data

Side channel pump
Electric supply 380V 3ph
Power W/Hp 6000/8
Weight kg 200
Vacuum max mmH2O 2900
Noise dB(A) 70
Tank capacity l 50
Flow capacity m3/h 390+390
Filter surface m2 8
Tools Nr 6
Working pressure Bar 6
Automatic filter cleaning
Manual filter cleaning
Multifunctional display
Filter performance display
Energy saving   Double Pump
ID Vacuum nozzle mm 75
Size (HxWxD) cm 138x136x55
