TURBINA HE1501 11kW – 15HP 400V 50Hz DUAL MOTOR – ENERGY SAVING
HE1501

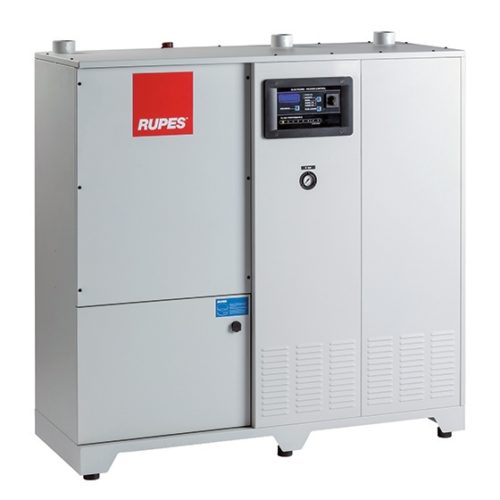

Turbine HE1501 is a Central Vacuum Unit for extracting micro-dust generated during a sanding process or different industrial processes.
Excellent vacuum performance, High reliability (up to 20.000 hours without maintenance), High filtering efficiency (99.5% with micro-dust with 0.3 [μm] dimension). Cyclonic pre-filtration system and filter cartridge protection. Electronic control panel for managing Centralized Dust Extraction System.
Multi-function unit to display:
- Total pump working hours;
- Total filter working hours;
- Useful notices for installation and use.
LED indicator for monitoring in continuous filter status. Efficient automatic filter cleaning system with Rotor Jet System. Double pump energy saving system. High safety level thanks to integrated protection devices. High silence thanks to integrated silencer and soundproofing panels.
Easy and fast extraction of dust container with automatic and pneumatic lifting system. High dust container capacity: 50 [L]
Photos
Technical data
| Side channel pump | • |
| Electric supply | 380V 3ph |
| Power (W/hp) | 11000/15 |
| Weight (kg) | 250 |
| Vacuum max (mmH2O) | 2900 |
| Noise dB(A) | 75 |
| Tank capacity (l) | 50 |
| Flow capacity (m3/h) | 550+550 |
| Filter surface (m2) | 8 |
| Tools | 10 |
| Working pressure (bar) | 6 |
| Automatic filter cleaning | • |
| Manual filter cleaning | • |
| Multifunctional display | • |
| Filter performance display | • |
| Energy saving | Double Pump |
| ID Vacuum nozzle (mm) | 75 |
| Size (HxWxD) (cm) | 138x136x55 |
