ATEX Turbine HE Standard Series 3-15kw with inverter

Read It

HE Series i ATEX

ATEX TURBINE is a centralized unit of category 3D, for Atex 22 zone, by suction of micro-dust generated during a polishing process or by various industrial processes.

RUPES high-efficiency centralized extraction inverter systems generate considerable and significant energy savings in industrial environments, assuring cost reduction throughout the production cycle.

RUPES inverter turbine automatically adjusts and modulates the power concerning how many vacuum points are opened/closed on the suction line. This helps to have a system with a high energy-saving level and excellent balance of the vacuum performance in every suction point.

Excellent vacuum performanceHigh reliability (up to 20.000 hours without maintenance), High filtering efficiency (99.5% with micro-dust with 0.3 [μm] dimensions). Cyclonic pre-filtration system and filter cartridge protection. Electronic control panel for managing Centralized Dust Extraction System;.

Multi-function unit to display:

  • Total pump working hours;
  • Total filter working hours;
  • Useful notices for installation and use.

LED indicator for monitoring in continuous filter status. Efficient automatic filter cleaning system with Rotor Jet System. High safety level thanks to integrated protection devices.High silence thanks to integrated silencer and soundproofing panels.

Easy and fast extraction of dust container with automatic and pneumatic lifting system. High dust container capacity: 50 [L].

Downloads

EN IT FR DE ES

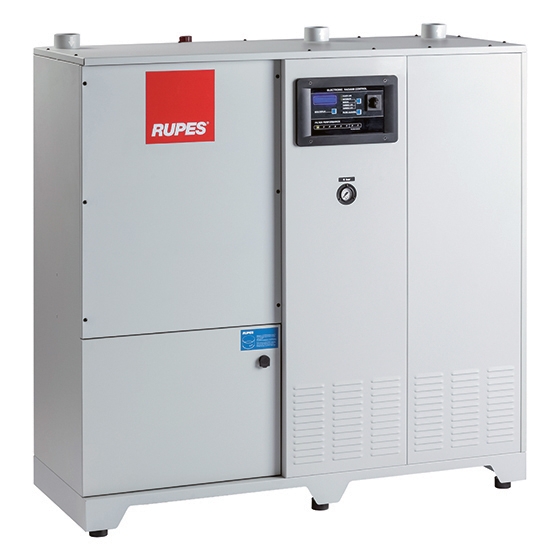

HE901i ATEX TURBINE WITH INVERTER 7,5HP 400V 50Hz

Photos

HE901i ATEX TURBINE WITH INVERTER 7,5HP 400V 50Hz

Versions

HE501iATEX 3kw

HE501iATEX 3kw

HE901iATEX 5,5kw

HE901iATEX 5,5kw

HE1301iATEX 7,5kw

HE1301iATEX 7,5kw

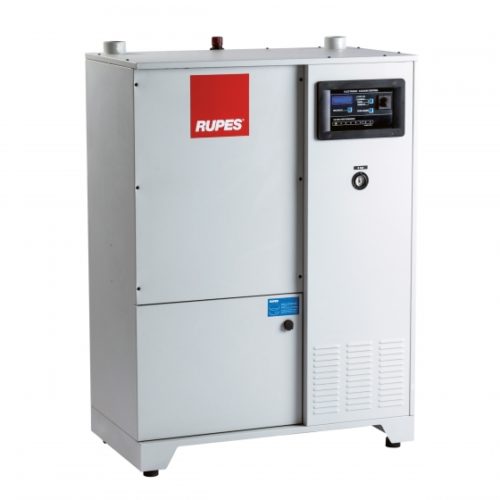

HE1801iATEX 15kw

HE1801iATEX 15kw

HE1901iATEX 11kw

HE1901iATEX 11kw

HE2001iATEX 15kw

HE2001iATEX 15kw

Technical data

HE501i HE901i HE1301i HE1801i HE1901i HE2001i
Pump side channel technology
Electric supply (ph) 380V 3ph 380V 3ph 380V 3ph 380V 3ph 380V 3ph 380V 3ph
Power (W/hp) 3000/4 5500/7.5 7500/10 15000/20 11000/15 15000/20
Weight (kg) 140 200 230 270 290 385
Vacuum level max (mmH2O) 2900 2900 2900 3500 3200 3500
Noise dB (A) 68 73 75 80 80 80
Tank capacity (l) 50 50 50 50 50 50
Flow capacity (m3) 420 600 750 1000 1100 1300
Filter surface (m2) 4 8 8 8 10 10
Tools 4 6 8 12 14 16
Working pressure (bar) 6 6 6 6 6 6
Automatic filter cleaning
Manual filter cleaning
Multifunctional display
Energy saving inverter inverter inverter inverter inverter inverter
ID vacuum nozzle (mm) 75 75 75 75 100 100
Size (hxwxd) (cm) 138x98x55 138x136x55 138x136x55 138x136x55 138x136x80 138x136x80
Atex Zone 22
