Control Unit Panel
PE Series
The PE series terminals can be either built-in or wall-mounted in work areas where it is desirable to optimise available space
The PE1 series can support one user and features manual cut-off (PE1 – PE1A – PE1C), automatic start (PE1A – PE1C), automatic cut-off (PE1C)
The PE2 series can support two users and features manual cut-off and automatic start (PE2A)
Photos
×

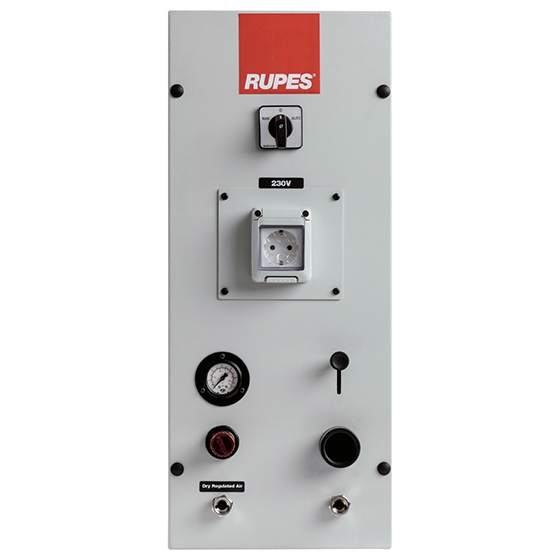

![Control Unit Panel- Gallery photo 1]( "PE1A")
![Control Unit Panel- Gallery photo 2]( "PE1C")

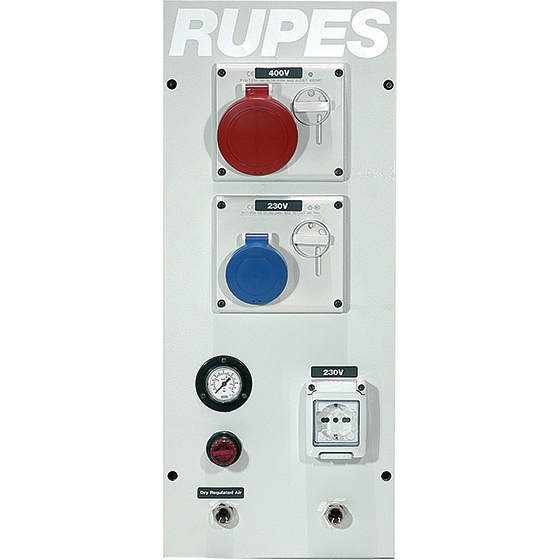

![Control Unit Panel- Gallery photo 3]( "PE1S")
![Control Unit Panel- Gallery photo 4]( "PE2")
![Control Unit Panel- Gallery photo 1]( "PE1A")
![Control Unit Panel- Gallery photo 2]( "PE1C")
![Control Unit Panel- Gallery photo 3]( "PE1S")
![Control Unit Panel- Gallery photo 4]( "PE2")
1
2
3
4
❮
❯
Versions
PE1
PE1A
PE1C
PE1S
PE2
PE2A
Données techniques
| PE1 | PE1A | PE1C | PE1S | PE2 | PE2A | |
| Weight (kg) | 5 | 5 | 9 | 5 | 9 | 9 |
| Size (HxWxD) (cm) | 60 x 25 x 18 | 60 x 25 x 18 | 52 x 48 x 18 | 60 x 25 x 18 | 52 x 48 x 18 | 52 x 48 x 18 |
| Electric tool sockets | 1 | 1 | 1 | – | 2 | 2 |
| Air quick coupling tools | 1 | 1 | 1 | – | 2 | 2 |
| Electric service sockets | – | – | 1 | 3 | 1 | 1 |
| Service air quick coupling | 1 | 1 | 1 | 1 | 1 | 1 |
| ID Vacuum nozzle (mm) | 1×50/1×34 | 1×50/1×34 | 1×50/1×34 | 1×50/1×34 | 2×50/2×34 | 2×50/2×34 |
| Tools | 1 | 1 | 1 | – | 2 | 2 |
| Automatic start-up | – | • | • | – | – | • |
| Manual Cut Off | • | • | – | – | • | • |
| Automatic Cut Off | – | – | • | – | – | – |
